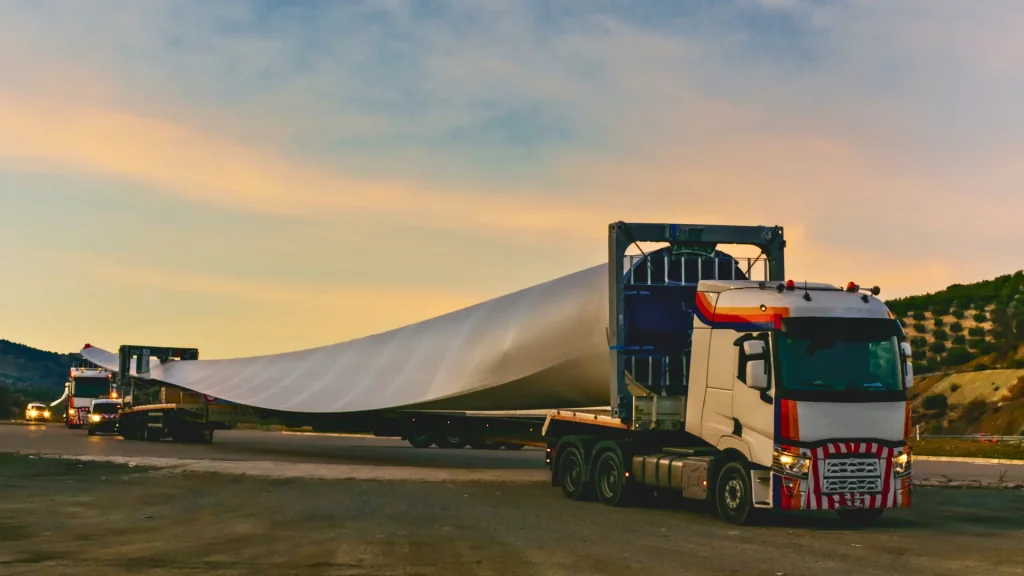

Imagine a massive turbine blade, longer than a Boeing 747, that travels across the globe. Additionally, picture a heavy transformer weighing hundreds of tons, embarking on a risky journey across the ocean. These are just a few examples of the incredible logistics behind heavy lift cargo transportation. Undoubtedly, this specialised field requires detailed planning. It also relies on advanced equipment and a strong understanding of global trade routes.
In general, heavy lift cargo refers to shipments that are oversized and overweight. So these shipments exceed the usual dimensions and weight limits of standard transportation methods. For example, this category includes industrial machinery and construction equipment. It also covers wind turbines, oil rigs, and even entire bridges. Due to their unique nature, heavy lift cargo requires specific handling, transport, and shipping solutions.
This article aims to help businesses understand how to ship heavy lift cargo to and from Australia. Specifically, we will explore the key considerations, common challenges, and best practices. These insights will ensure the safe and efficient transport of project cargo.
What is Heavy Lift Cargo?
Heavy lift cargo generally refers to indivisible items exceeding 100 tons and often exceeding 100 meters in width or height. Additionally, it requires specialised handling and transportation due to their unique dimensions, weight, and the absence of standardisation. However, other factors like irregular shape, fragility, and the need for specialised handling also contribute to its classification as ‘heavy lift’.
While weight and size are primary factors, it is equally crucial to consider other aspects. For example, the cargo’s center of gravity, structural integrity, and handling complexity significantly influence its classification. Additionally, the “heavy lift” designation goes beyond size and weight parameters.
Beyond sheer size and weight, factors such as:
- Irregular shapes. Firstly, cylindrical, spherical, or irregularly shaped items pose unique challenges for loading. Additionally, they require specific methods for securing and transporting.
- Fragility. Secondly, delicate equipment or components need specialised handling. Protective measures are also essential to prevent damage during transportation.
- Center of gravity. Thirdly, the distribution of weight within the cargo significantly affects stability. This also influences its specific handling requirements.
- Sensitivity to environmental factors. Finally, some cargo may be sensitive to temperature, humidity, or vibration. These conditions require specialised transportation and storage solutions.
Moreover, the lack of standardisation in heavy lift cargo calls for individual transport planning. Therefore, each shipment requires a thorough assessment of its unique characteristics. Additionally, the chosen transportation route and available resources must be carefully evaluated.
Types of Heavy Lift Cargo
Categorisation,certainly, can be highly usefull to understand the diverse range of heavy lift cargo. Here are some common ways to categorise heavy lift cargo:
- Industry:
- Construction: Wind turbine blades, bridge sections, large construction equipment (cranes, excavators), bridge sections.
- Energy: Transformers, generators, oil and gas drilling rigs, offshore platforms, turbines, reactors, boilers.
- Aerospace: Aircraft engines, fuselage sections, rocket components, large aircraft sections.
- Manufacturing: Heavy machinery, industrial boilers, large industrial presses.
- Renewable Energy: Wind turbine towers, solar panels (large arrays).
- Offshore: Oil rigs, production platforms
- Material:
- Steel: Items like beams, girders, and pressure vessels fall into this group.
- Concrete: For example, prefabricated structures and bridge segments are included here.
- Machinery: This includes industrial equipment, turbines, and generators.
- Oversized Equipment: Examples include construction equipment, wind turbines, and aircraft parts.
- Shape:
- Cylindrical: Pipes, tanks, drums
- Rectangular: Containers, boxes, crates
- Irregular: Wind turbine blades, aircraft fuselages, complex machinery
Additionally, categorisation can include the following:
- Project Cargo. This also involves large and complex equipment for specific projects, such as power plants or oil refineries.
- Out-of-Gauge Cargo. Furthermore, this refers to shipments exceeding standard shipping dimensions. Additionally, it requires specialised permits and transportation routes.
- Breakbulk Cargo. Finally, this category includes items that are not containerized. Moreover, it requires specialised handling and stowage.
Heavy Lift Cargo in Shipping
Maritime Transportation
Maritime transport plays a vital role in moving heavy lift cargo across oceans. Additionally, it offers the capacity to handle the largest and heaviest shipments. For long-distance transportation, it is the most common and efficient mode.
Key aspects of maritime transportation for heavy lift cargo include the following:
- Specialised Vessels: These vessels are specifically designed to handle oversized and overweight cargo.

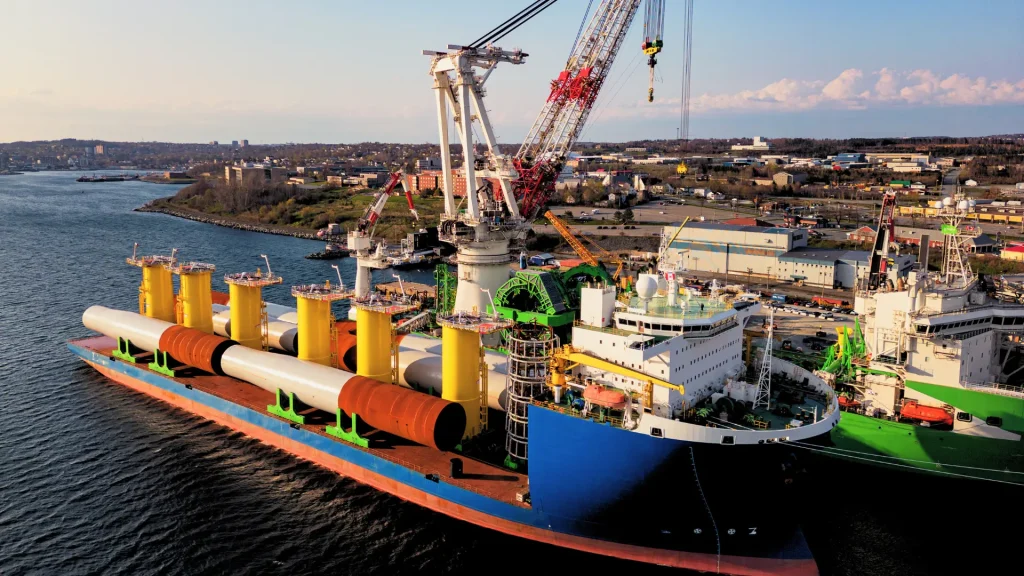

- Heavy Lift Ships: Firstly, Heavy Lift Ships are equipped with powerful cranes. So these cranes can lift and load heavy cargo directly onto the vessel.
- Semi-Submersible Vessels: Secondly, Semi-Submersible vessels can partially submerge. This feature facilitates the loading of large and heavy equipment, such as oil rigs or offshore platforms.
- Ro-Ro Ships: Thirdly, Ro-Ro Ships allow cargo to be driven directly onto the deck. So this process minimises the need for heavy lifting equipment.
- Port Infrastructure: Additionally, specialised terminals are essential for efficient loading and unloading. Also these terminals include heavy lift cranes, gantries, and quayside infrastructure.
- Challenges: Moreover, several challenges exist in maritime transportation. For instance, navigational complexities and adverse weather conditions pose risks. Additionally, precise loading and unloading operations are critical.
Furthermore, Flo/Flo (Float-on/Float-off) vessels play an important role in transporting large and heavy modules. Specifically, they are used for offshore oil and gas projects. Moreover, these vessels allow cargo to float onto the deck, which simplifies the loading and unloading process.
Air Freight
Air freight can also be a viable option for heavy lift cargo in specific scenarios. For example, it is particularly useful in the following situations:
- Urgent Shipments. Firstly, when time is critical, air freight significantly reduces transit time.
- High-Value Items. Secondly, it is ideal for valuable and time-sensitive goods. In such cases, speed outweighs cost.
- Remote Locations.Thirdly, it provides access to areas where sea or land routes are limited.
Limitations of Air Freight:
But, despite its advantages, air freight has certain limitations:
- Size and Weight Restrictions. Aircraft can only accommodate cargo up to specific size and weight limits.
- Cost. Furthermore, air freight is much more expensive than sea freight.
Purpose of a Heavy Lift
Industrial Projects
Generally, heavy lift cargo plays a pivotal role in:
- Infrastructure Development. Firstly, it helps build bridges, dams, and other major civil engineering projects.
- Energy Sector. Secondly, heavy lift cargo supports the construction and maintenance of power plants, oil refineries, and wind farms.
- Manufacturing: Thirdly, it enables the installation of heavy machinery in factories and production facilities.
- Mining and Resource Extraction. Lastly, it assists in transporting and installing essential mining equipment.
Infrastructure Development
Also heavy lift transportation is essential for:
- Bridge Construction. Transporting and installing massive bridge sections.
- Dam Construction. Moreover, moving and assembling large concrete components.
- Tunnel Construction. Additinally, transporting heavy machinery and equipment for underground excavation.
Global Trade
Furthermore, heavy lift cargo facilitates global trade by:
- Enabling the movement of large and complex machinery. For example, across international borders for manufacturing, industrial, and infrastructure projects.
- Supporting the global supply chain. For instance, connecting manufacturers and suppliers with customers worldwide.
- Driving economic growth. For example, by enabling the development of large-scale industrial and infrastructure projects.
Primary Challenges in Handling Heavy Lift Cargo
One of the core challenges in handling heavy lift cargo is the absence of standardisation. So each shipment presents unique dimensions, weight, and handling requirements. Therefore, customised solutions are necessary for every project.
Loading and Unloading
Loading and unloading heavy lift cargo involve several critical challenges:
- Weight Distribution. Firstly, ensuring even weight distribution prevents instability and equipment damage.
- Securing the Load. Moreover, using proper rigging and lashing methods helps prevent movement during transport.
- Safety of Personnel. Furthermore, protecting workers from potential hazards during these operations is essential.
Transportation

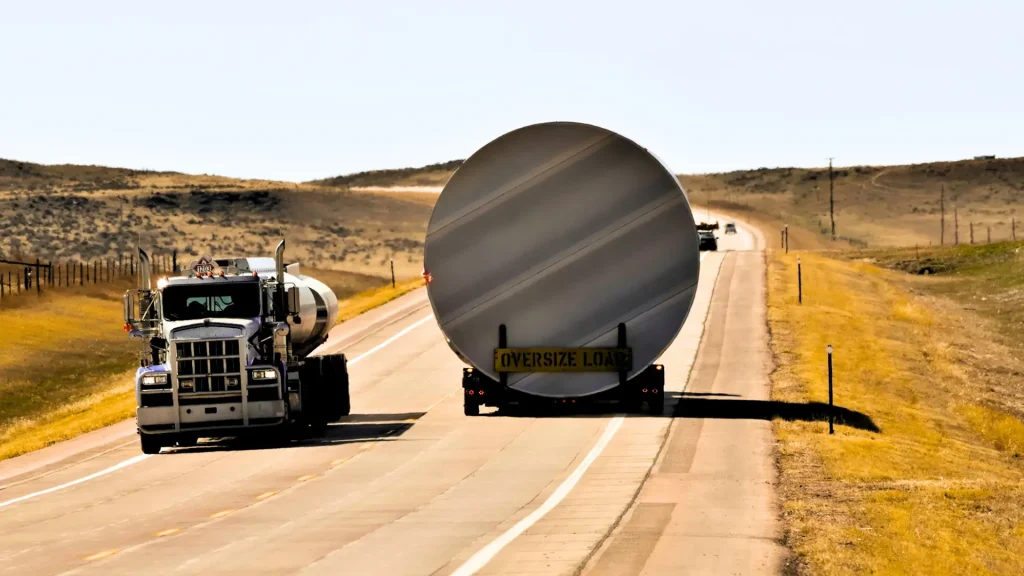

Route Planning
Undoubtedly, route planning is critical for the successful transportation of heavy lift cargo. This involves:
- Identifying suitable routes. Firstly, avoiding low bridges, narrow roads, and similar obstacles ensures smooth transport.
- Obtaining necessary permits: Secondly, securing permits for oversized and overweight loads is mandatory.
- Coordinating with local authorities: Lastly, working with local authorities ensures safe and efficient transportation.
Navigational Challenges
Navigational challenges during transportation include:
- Tidal restrictions. Navigating through channels and waterways, specifically, with changing water levels can be difficult.
- Weather conditions. Moreover, dealing with strong winds, heavy seas, and other adverse weather conditions is challenging.
- Navigational hazards. Lastly, avoiding obstacles such as underwater obstructions and shallow waters is crucial.
Securing and Stabilising
Securing and stabilising heavy lift cargo is critical for safe transport. Some key methods include:
- Rigging. Firstly, using chains, cables, and other rigging equipment to secure the cargo.
- Lashing. Secondly, securing the cargo to the vessel or transport vehicle using strong straps and lashing bars.
- Ballasting. Thirdly, adding weight to the vessel or transport vehicle to improve stability.
- Specialised equipment. Finally, using airbags, cradles, and other specialised equipment to support and protect the cargo.
Infrastructure Investigation
Thorough infrastructure assessment is critical for the safe and efficient transportation of heavy lift cargo. This includes a detailed evaluation of:
- Bridges. Assessing bridge load capacities and clearances to ensure the safe passage of oversized loads.
- Tunnels. Additionally, evaluating tunnel dimensions and clearances to accommodate the height and width of the cargo.
- Overhead Clearances. Moreover, checking overhead power lines, trees, and other obstacles is essential for a smooth journey.
Capacity of a Heavy-Lift Ship
The capacity of a heavy-lift ship is determined by a combination of factors:
Crane Capabilities: Heavy lift ships are equipped with powerful cranes, often exceeding 1,000 tons of lifting capacity.
- Lifting Capacity. Firstly, this refers to the maximum weight a crane can lift directly.
- Boom Length. Additionally, the crane’s boom length determines its reach and flexibility when handling cargo.
- Crane Configurations. Moreover, some ships feature multiple cranes. These configurations provide greater flexibility and efficiency during loading and unloading.
Deck Space and Strength:
- Sufficient deck area. Firstly, the deck must have enough space to accommodate the dimensions and weight of the cargo.
- Structural integrity. Additionally, the ship’s structure must be strong enough to handle the weight and stresses of heavy-lift cargo.
- Cargo securing areas. Furthermore, designated areas with strong points are essential for securing cargo during transport.
Specialised Equipment:
- Rollers and skids. Firstly, these facilitate the movement of heavy cargo across the deck.
- Gantries. Additionally, overhead structures provide support and assist in moving heavy cargo.
- Ballast systems. Moreover, these systems adjust the ship’s draft and stability to accommodate different cargo loads.
Notably, the “flo/flo” (float-on/float-off) method, which is used by specialised vessels like semi-submersibles, significantly increases capacity. Specifically, it allows large and heavy structures to be floated onto the deck, thereby eliminating the need for heavy lifting in many cases.
Examples of Heavy Lift Cargo
These are just a few examples of the diverse range of heavy lift cargo that is transported globally.
- Construction Equipment:
- Cranes: Tower cranes, crawler cranes, mobile cranes
- Excavators: Large excavators with massive buckets
- Bulldozers: Heavy-duty bulldozers for earthmoving
- Excavator Buckets: Large buckets for digging and excavating
- Industrial Machinery:
- Turbines: Gas turbines, steam turbines, hydroelectric turbines
- Generators: Large power generators for industrial use
- Transformers: High-voltage transformers for power transmission
- Aerospace Components:
- Aircraft engines: Large and complex jet engines
- Fuselage sections: Large sections of aircraft bodies
- Rocket boosters: For space launch vehicles
- Aircraft wings and tails: Large components for aircraft assembly
- Oil and Gas Equipment:
- Drilling rigs: Offshore and onshore drilling rigs
- Pipelines: Large-diameter pipelines for oil and gas transportation
- Subsea pipelines: For transporting oil and gas from offshore platforms
- Offshore drilling platforms: Large and complex structures for oil and gas exploration
- Renewable Energy Components:
- Wind turbine blades: Long and slender blades for wind turbines
- Wind turbine towers: Tall structures supporting wind turbines
- Wind turbine nacelles: The central component that houses the gearbox and generator
- Solar panel arrays: Large, pre-assembled arrays for solar power plants.
What do Heavy Lift Ships Carry?
Basically, heavy lift ships transport a wide variety of cargo, including:
- Project Cargo:
- Firstly, large and complex equipment for industrial projects, such as power plants, refineries, and oil and gas platforms.
- Additionally, modular construction components, such as pre-fabricated sections for industrial plants and buildings.
- Moreover, civil engineering structures, including bridge sections and tunnel segments.
- Lastly, wind turbines and their components, such as blades, towers, and nacelles.
- Out-of-Gauge Cargo:
- In particular, cargo that exceeds standard shipping dimensions, including length, width, and height.
- Furthermore, oversized and overweight machinery and equipment.
- Also, non-standard containers and crates.
- Breakbulk Cargo:
- Notably, cargo that is not containerised and requires specialised handling and stowage.
- Heavy machinery and equipment
- In addition, project cargo components.
- Lastly, military equipment, such as tanks, armored vehicles, and aircraft.
- Specialised Cargo:
- Specifically, oil and gas drilling rigs and platforms.
- Also, offshore wind turbines and their foundations.
- Additionally, large yachts and superyachts.
Specialised Heavy Lift Vessels.
There are several types of specialised vessels used for heavy lift cargo, including:
- Semi-submersible ships. Firstly, semi-submersible ships can partially submerge to facilitate the loading of large and heavy equipment, such as oil rigs and offshore platforms.
- Roll-on/Roll-off (Ro-Ro) ships. Secondly, Ro-Ro ships allow cargo to be driven directly onto the vessel, which minimises the need for heavy lifting equipment.
- Jack-up barges. Thirdly, jack-up barges are used for offshore construction and maintenance. Also they are capable of raising themselves above the water level.
- Flo-Flo ships. Moreover, Float-on/Float-off ships are specialised vessels for transporting oversized cargo by submerging. As a result they allow the cargo to float onto their decks.
- Heavy lift barges. Lastly, heavy lift barges are designed specifically for transporting heavy and oversized cargo. Additionally, they are often equipped with specialised cranes and lifting equipment.
What is a Heavy Lift Cargo on a Ship?
Heavy lift cargo on a ship refers to any cargo that exceeds the standard handling capabilities of conventional cargo ships. Specifically, this includes cargo that is:
- Excessively heavy. In other words, exceeding the weight limits of standard cargo handling equipment.
- Typically, oversized cargo surpasses the dimensions of standard shipping containers.
- Difficult to handle. Due to its unique shape, weight distribution, or fragility.
Characteristics:
Usually, heavy lift cargo is distinguished from other types of cargo on a ship by its unique characteristics:
- High center of gravity. Firstly, high center of gravity requires careful loading and securing to maintain stability.
- Sensitivity to movement. Secondly, sensitivity to movement, demanding specialized handling to prevent damage during transport.
- Need for specialised equipment. Lastly, the need for specialised equipment, such as heavy lift cranes, gantries, and other advanced tools.
What is a Heavy Lift Cargo on an Aircraft?
Generally, heavy lift cargo on an aircraft refers to any cargo that exceeds the standard weight and size limitations of commercial aircraft. This typically includes:
- Oversized cargo. In other words, exceeding the dimensions of the aircraft’s cargo hold.
- Heavy cargo. In simpler terms, exceeding the weight limits of the aircraft.
Limitations:
Limitations on the size and weight of heavy lift cargo transported by air include:
- Aircraft payload capacity. Firstly, the maximum weight the aircraft can carry.
- Cargo hold dimensions. Secondly, the size and shape of the aircraft’s cargo hold.
- Center of gravity restrictions. Thirdly, center of gravity restrictions, which are crucial for maintaining the aircraft’s stability.
Specialised Aircraft:
Specialised aircraft used for transporting heavy lift cargo include:
- C-17 Globemaster III. Operated by the Royal Australian Air Force (RAAF), it’s a versatile aircraft used for various military and humanitarian missions. Also including heavy cargo transport.
- Boeing C-5 Galaxy. While not part of the RAAF, the C-5 Galaxy can occasionally operate in Australian airspace for specific heavy lift missions.
- Antonov An-124 Ruslan. Also a very large cargo aircraft capable of transporting outsized and heavy loads.
- Boeing 747-8F. The Boeing 747-8F plays a crucial role in Australian air cargo transport. Specifically, this large commercial freighter is utilised by cargo airlines operating within and beyond Australian borders.
How to Transport Heavy Lift Cargo
Planning and Preparation
Thorough planning and preparation are crucial for the successful transportation of heavy lift cargo. This process involves:
- Detailed Assessment. Firstly, a detailed assessment of the cargo’s dimensions, weight, center of gravity, and any specific handling requirements.
- Route Survey. Secondly, conducting a thorough route survey to identify potential obstacles, such as low bridges, narrow roads, and overhead power lines.
- Risk Assessment. Additionally, performing a risk assessment to identify and mitigate potential risks, including weather delays, equipment failures, and unforeseen obstacles.
- “What-if” Scenarios. Moreover, developing “what-if” scenarios to address potential challenges and ensure the smooth flow of operations.
- Lastly, fostering teamwork by creating a collaborative environment with a well-coordinated team, including loading officers, crane operators, drivers, and other specialists.
Transportation Modes
- Maritime:
- Firstly, ships are the most common mode for long-distance transportation of heavy lift cargo.
- In addition, barges are ideal for inland waterway transportation, especially for large and heavy components.
- Road:
- On the road, trucks equipped with specialised trailers handle oversized and overweight loads
- Specialised Trailers:
- Lowboy trailers. Firstly, offer a low deck height for easy loading and unloading.
- Hydraulic modular trailers. Secondly, highly flexible and adaptable to various cargo dimensions.
- Self-Propelled Modular Transporters (SPMTs). Thirdly, highly maneuverable and capable of transporting extremely heavy loads.
- Rail:
- Similarly, railcars are suitable for long-distance overland transport, especially for heavy and bulky cargo.
- Flatbed railcars. Also flatbed railcars provide a stable platform for transporting oversized equipment.
- Air:
- Cargo planes. Usually used for urgent shipments and high-value items where speed is paramount.
- Multimodal Transport: Finally, combining different modes of transport (e.g., sea and road, rail and sea) optimises efficiency and cost-effectiveness.
- Specialised Trailers:
- On the road, trucks equipped with specialised trailers handle oversized and overweight loads
Safety Considerations
Safety is paramount throughout the entire transportation process:
- Safety Audits. Firstly, conducting regular safety audits to identify and mitigate potential hazards.
- Emergency Response Plans. Secondly, developing and implementing emergency response plans to handle unforeseen incidents.
- Compliance with Regulations. Thirdly, adhering to all relevant safety regulations and guidelines. For example those related to load securing, weight limits, and route restrictions.
- Proper Training. Lastly, ensuring that all personnel involved in the transportation process are properly trained and equipped to handle heavy lift cargo safely.
The Future of Heavy Lift Transport
The future of heavy lift cargo transportation will be shaped by several key trends and technologies:
- Firstly, advancements in ship design will lead to the development of more efficient and specialised heavy lift vessels, including larger and more powerful cranes, improved stability, and enhanced fuel efficiency.
- Additionally, automation and robotics will see increased use in handling and transporting heavy lift cargo, such as automated guided vehicles (AGVs), robotic cranes, and drones for inspection and monitoring.
- Furthermore, 3D printing will have a potential impact on the manufacturing and transportation of heavy lift components, enabling localised production and reducing the need for large-scale transportation.
- Moreover, digitalisation will play a crucial role through the integration of technologies like blockchain and the Internet of Things (IoT) to improve tracking, visibility, and efficiency in the supply chain.
- Equally important, sustainable practices will focus on environmentally friendly transportation solutions, such as reducing emissions, minimising environmental impact, and exploring alternative fuels.
- Lastly, the development of advanced materials will provide lighter and stronger materials for use in heavy lift equipment and structures, thereby reducing weight and improving efficiency.
Conclusion
In conclusion, heavy lift cargo transportation is a complex and challenging undertaking that requires meticulous planning, specialised equipment, and a high degree of expertise. Businesses involved in heavy lift cargo transportation should consult with experienced logistics providers, freight forwarders, and heavy lift specialists, like GenFreight, to ensure the safe and successful delivery of their cargo. By leveraging the expertise of industry professionals, companies can navigate the complexities of heavy lift transportation and achieve their business objectives.
Additional resources:
The Australian Border Force (ABF) is responsible for protecting Australia’s borders and enabling legitimate travel and trade. They have information on customs clearance, import conditions, and biosecurity requirements.
2.Department of Agriculture, Fisheries and Forestry
The Department of Agriculture, Fisheries and Forestry (DAFF) is responsible for managing biosecurity risks to Australia. They have information on import conditions for agricultural products.
The National Transport Commission (NTC) is responsible for developing national transport policies and regulations. They have information on road transport regulations for heavy lift cargo.
